Running Fusion Applications RCU

Oracle Fusion Applications Installation: Running Fusion Applications Repository Creation Utility (Apps RCU)

Previous: Installing Oracle 11g Database (Applications Transactional Database)

Important Note: This is OLD guide for old version 11.1.1.5. Please follow instructions at http://www.oratraining.com/blog/2012/12/oracle-fusion-applications-installation-step-by-step-guide-11-1-5/ for latest guide for current version i.e. 11.1.5



Create a directory on physical partition and call it APPS_RCU_HOME

[oracle@fusion linux]$ mkdir /app/fusion/provisioning/apps_rcu



Go to repository_location/installers/apps_rcu and locate the rcuHome_fusionapps_linux.zip file. This file was staged when you created the installer repository.



Extract the contents of rcuHome_fusionapps_linux.zip to a directory (APPS_RCU_HOME) on the database server. All dependent components that Applications RCU needs are included in this zipped file.



[oracle@fusion apps_rcu]$ cd /app/fusion/provisioning/apps_rcu

[oracle@fusion apps_rcu]$ unzip /mnt/fusion/installers/apps_rcu/linux/rcuHome_fusionapps_linux.zip



Create a temporary directory on the database server. Make a note of the location.

You will need to enter this location when you specify a value for FUSIONAPPS_DBINSTALL_DP_DIR



[oracle@fusion apps_rcu]$ mkdir /app/fusion/provisioning/apps_rcu/dp_dir



Locate and copy APPS_RCU_HOME/rcu/integration/fusionapps/export_

fusionapps_dbinstall.zip to the directory you specified for FUSIONAPPS_

DBINSTALL_DP_DIR.



Unzip export_fusionapps_dbinstall.zip to FUSIONAPPS_DBINSTALL_DP_DIR.



[oracle@fusion dp_dir]$ cd /app/fusion/provisioning/apps_rcu/dp_dir

[oracle@fusion dp_dir]$ unzip /app/fusion/provisioning/apps_rcu/rcu/integration/fusionapps/export_fusionapps_dbinstall.zip



Go to APPS_RCU_HOME/rcu/integration/biapps/schema and locate the

otbi.dmp file.

Copy otbi.dmp to FUSIONAPPS_DBINSTALL_DP_DIR (where you unzipped the

contents of export_fusionapps_dbinstall.zip).



[oracle@fusion dp_dir]$ cp -p ../rcu/integration/biapps/schema/otbi.dmp /app/fusion/provisioning/apps_rcu/dp_dir/



Launch Repository Creation Utility (RCU)



[oracle@fusion bin]$ cd /app/fusion/provisioning/apps_rcu/bin

[oracle@fusion bin]$ ./rcu

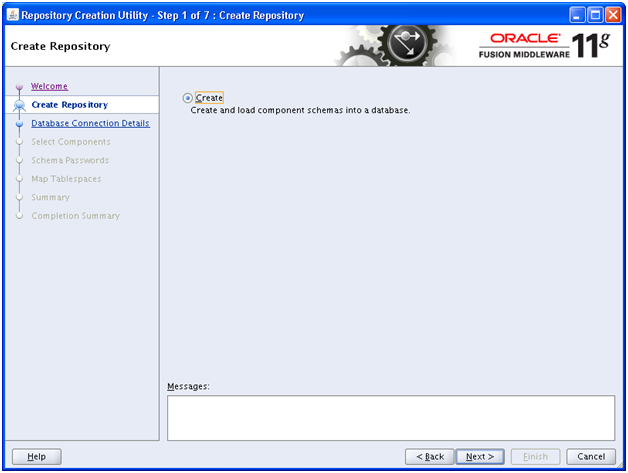

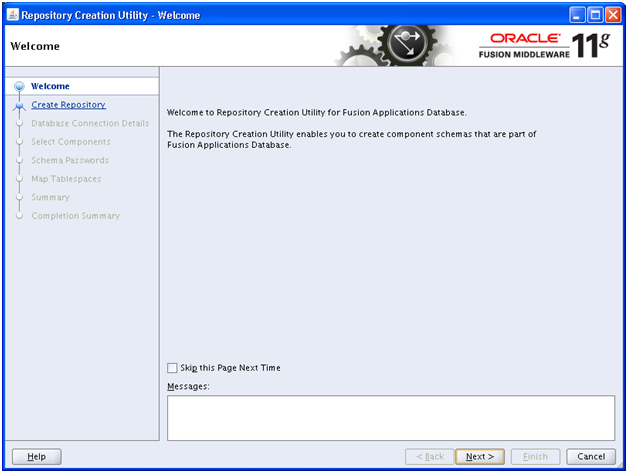

Click Next

Click Next

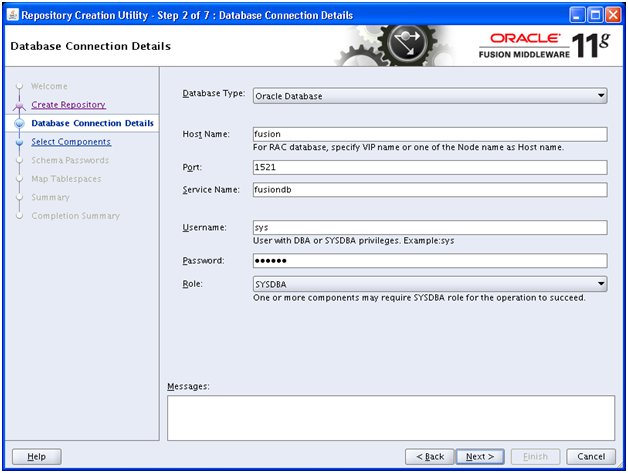

Enter same details as entered while creating the database in previous step. Click Next

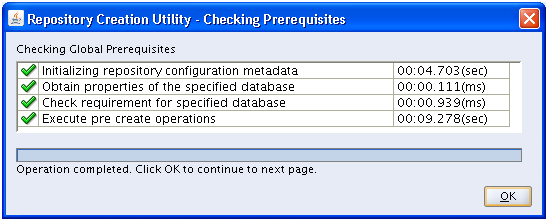

This screen will check pre-requisites. Click Ok once successful.

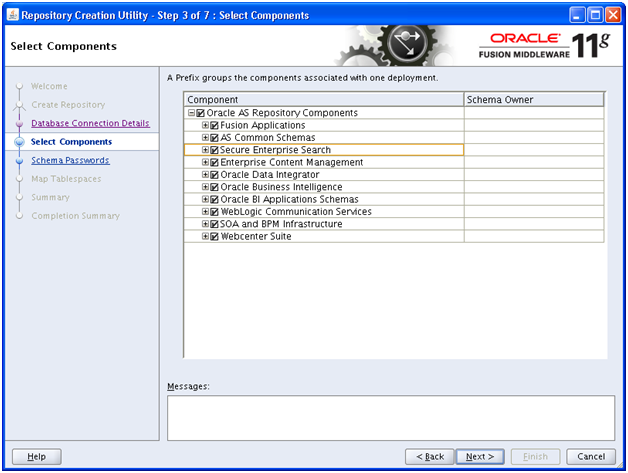

Select all components in this Window.

It will look as above when you collapse all parent values. Click Next

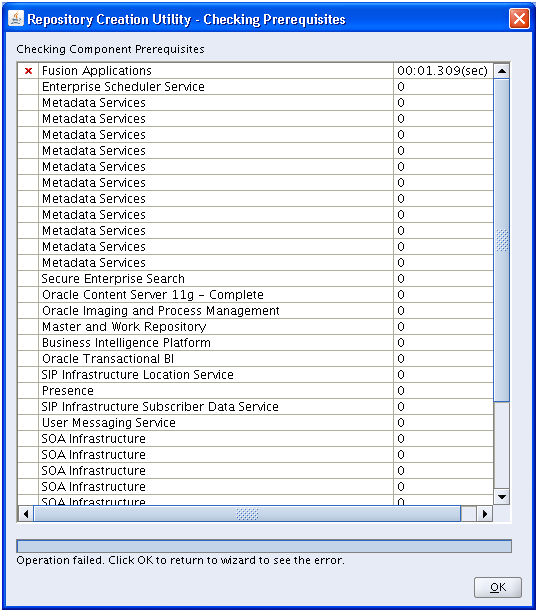

Important Note: If you had reduced SGA and PGA size after DB installation then this prerequisites check may fail with following error.

RCU-6083:Failed – Check prerequisites requirement for selected component:FUSIONAPPS

RCU-6107:DB Init Param Prerequisite failure for: pga_aggregate_target

Current Value is 2147483648. It should be greater than or equal to 4294967296.

RCU-6107:DB Init Param Prerequisite failure for: sga_target

Current Value is 2147483648. It should be greater than or equal to 9663676416.



To fix this issue, we need to modify the minimum requirement of SGA and PGA in installer pre-requisite config file located at /app/fusion/provisioning/apps_rcu/rcu/integration/fusionapps/fusionapps.xml



Change these values as follows.

<DBPrerequisite COMPARE_OPERATOR=”GE” DATA_TYPE=”NUMBER” PREREQ_TYPE=”InitParameter”>

<ValidIf DBTYPE=”ORACLE”/>

<PrereqIdentifier>sga_target</PrereqIdentifier>

<PrereqValue>2147483648</PrereqValue>

</DBPrerequisite>

…

<DBPrerequisite COMPARE_OPERATOR=”GE” DATA_TYPE=”NUMBER” PREREQ_TYPE=”InitParameter”>

<ValidIf DBTYPE=”ORACLE”/>

<PrereqIdentifier>pga_aggregate_target</PrereqIdentifier>

<PrereqValue>2147483648</PrereqValue>

</DBPrerequisite>




The prerequisites check should finish successfully. Click Ok

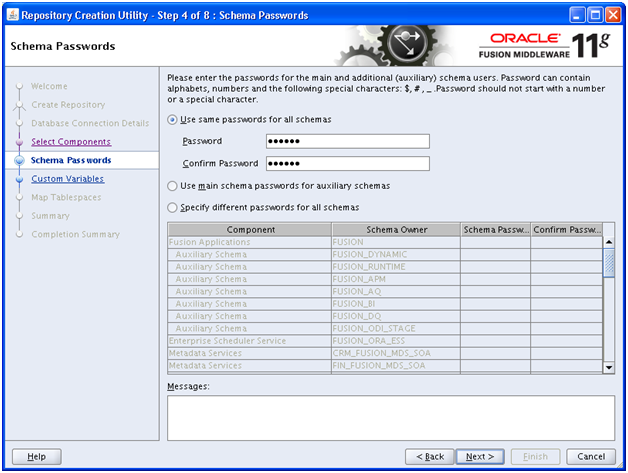

Enter same password Oracle123 for keeping it simplefor now. Click Next




Open another terminal window. Create following directories for custom environment variables.

[oracle@fusion database]$ mkdir /app/fusion/database/applcp

[oracle@fusion database]$ mkdir /app/fusion/database/appllog

[oracle@fusion database]$ mkdir /app/fusion/database/keyflexcombfilter

[oracle@fusion database]$ mkdir /app/fusion/database/obieebkp

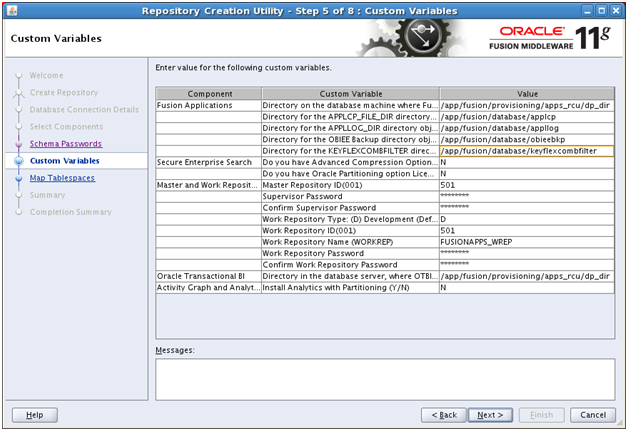

Specify these following values in the same screen under Fusion Applications Component (expect first value which is the temporary DP directory created before /app/fusion/provisioning/apps_rcu/dp_dir)



Supervisor Password: You must enter the same password you set up as ODI SUPERVISOR in Applications RCU. Since we kept all passwords as Oracle123, nothing much to remember. Enter the same password.

Work Repository Password: Default = None. You must enter the same password set up as ODI SUPERVISOR in Applications RCU.

Oracle Transactional BI

Directory on the database server where Oracle Transactional Business Intelligence import and export files are stored. Enter /app/fusion/provisioning/apps_rcu/dp_dir again.

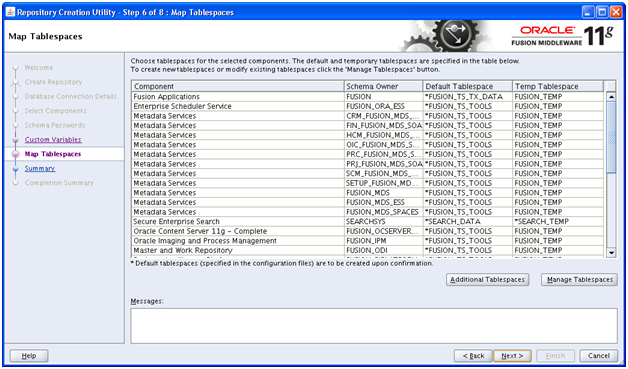

Change nothing in this page. Click Next

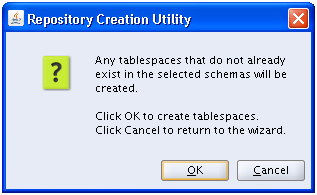

Click OK

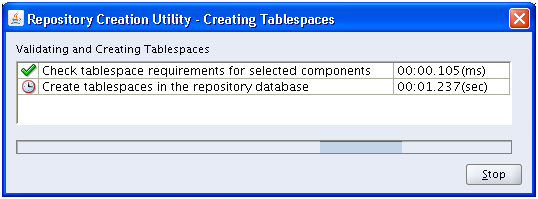

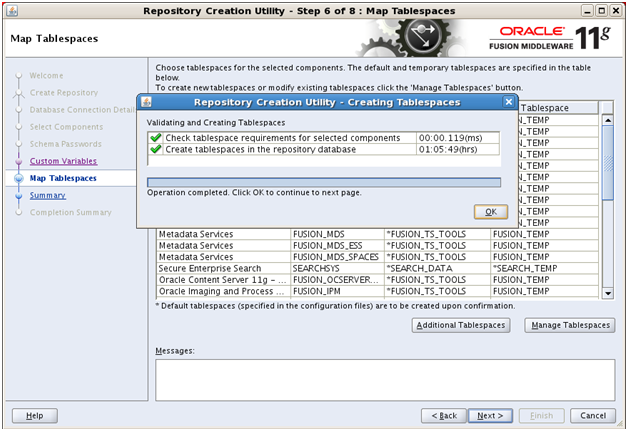

Now it will create the required tablespaces. Click OK

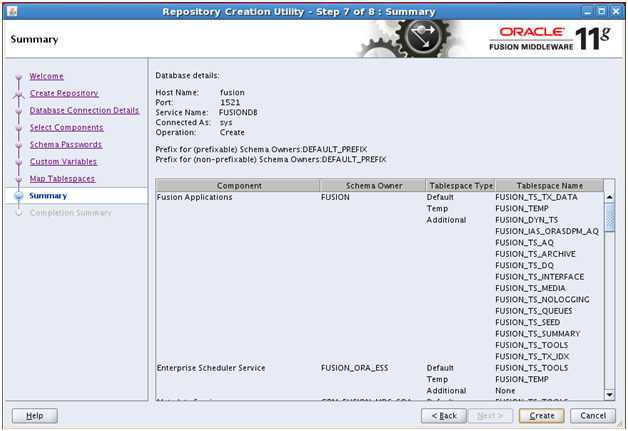

Once Tablespaces are created, next Summary screen will appear for creating the required Schemas. Click Create

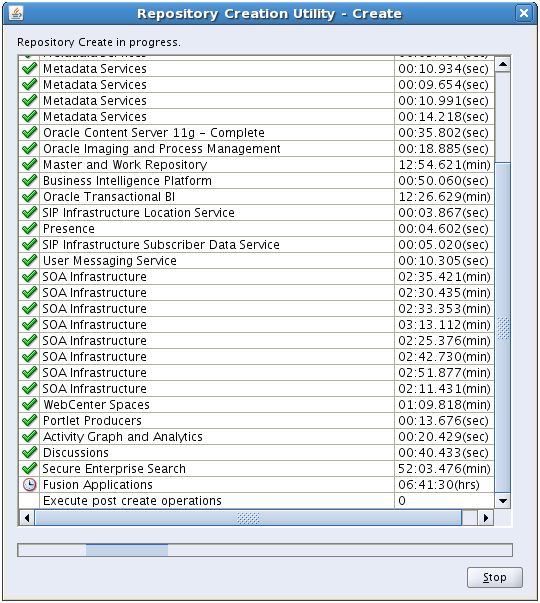

It may take a couple of hours or even more based on the available memory and CPU for the VM and host machine.

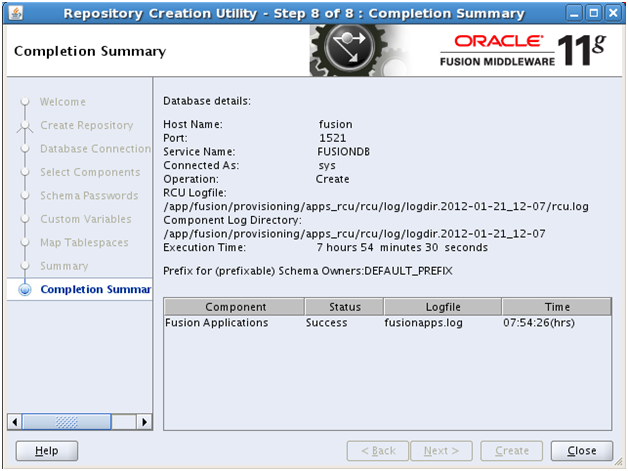

Once finished, a completion summary screen will appear. It will show details for each components and completion states. Click Close

Next: Running Repository Creation Utility (RCU) for Oracle Identity Management components

Installing Oracle Fusion Applications – steps

  1. Installing Fusion Applications Provisioning Framework
  2. Installing Oracle 11g Database (Applications Transactional Database)
  3. Running Oracle Fusion Applications Repository Creation Utility (Applications RCU)
  4. Creating another database for Oracle  Identity Management Infrastructure (optional)
  5. Running Repository Creation Utility (RCU) for Oracle Identity Management components
  6. Installing Oracle Identity and Access Management Components
  7. Configuring Oracle Identity and Access Management components
  8. Integrate Oracle Identity Manager (OIM) and Oracle Access Manager (OAM)
  9. Creating a New Provisioning Plan
  10. Provisioning an Applications Environment
