Oracle Fusion Applications installation – Step by step guide (11.1.5)

Fusion Applications 11.1.5 installation is not straightforward unlike E-Business Suite 11i/R12 installation. So we need to divide the installation into following main steps. Please note that we have changed the default order since we are going to host both RCU in one database which is fine since both have different schemas. This will save us a lot of Memory for the VM or Host. Please note that we will be performing single node installation so all components will be installed on single node. All steps are provided with detailed screenshots.

Note: If you are looking for Fusion Applications 11.1.7 installation steps then you can refer to following link.

http://www.oratraining.com/blog/2013/11/oracle-fusion-applications-installation-step-by-step-guide-11-1-7/

If you are looking for Fusion Applications 11.1.6 installation steps then you can refer to following link.

http://www.oratraining.com/blog/2013/03/oracle-fusion-applications-installation-step-by-step-guide-11-1-6/

Note: I could see that a lot of you were still referring to the installation steps in my older posts for FA 11.1.1.5 or 11.1.4 etc, I have redirected all those old posts to this now. Also please do not use a saved version of the posts since we keep updating the posts based on new findings, issues, workarounds and suggestion from fellow community members. If you still want the documents for older versions, please comment below so that I will provide alternate link to you.

Preparing for Oracle Fusion Applications installation

  1. Downloading Oracle Fusion Applications media
  2. OR
    Install Oracle Linux or Solaris on a Physical machine (We are using physical machine this time)

  3. Staging/Creating Oracle Fusion Applications provisioning repository

Installing Oracle Fusion Applications – steps

  1. Create another database for Oracle Identity Management Infrastructure (optional)

We are going to install Fusion Applications 11.1.5 for Oracle Solaris Operating system. The installation is almost same as Linux installation so you can use this guide for any installation. So we will download the installation media for Oracle Fusion Applications 11.1.5 for Oracle Solaris SPARC from http://edelivery.oracle.com

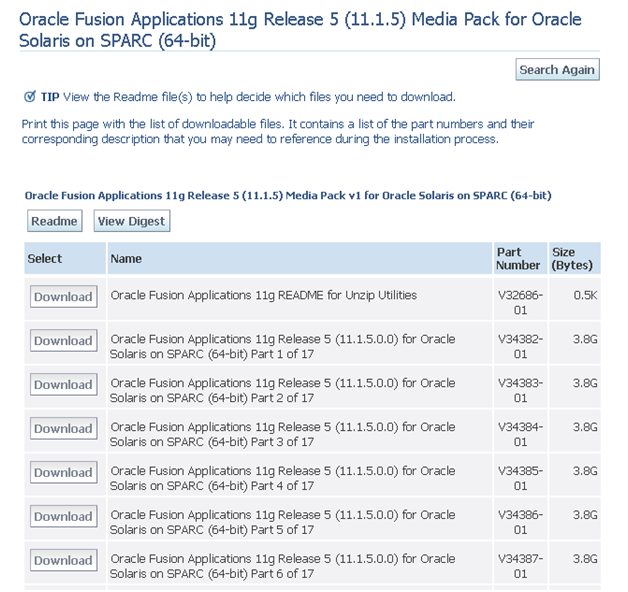

Login to access the following screen.

Select “Oracle Fusion Applications” and required platform from the list. Click Go. Open the first pack.

Download the first 17 media files (excluding README). We will not need rest of the media for this installation. Unzip all these files into one Stage directory.

Important Note: Since some of the files have very long directory path (very close to 255 characters), please unzip these files into stage folder name to keep short name. At least 2 files have very long path so let us try to avoid this.

We must have OS installed either on physical or a virtual machine in order to proceed with the installation.

Note: We can also use VMWare to host the Virtual Machine. We will post another guide on setting up VMWare virtual machine. But the good thing is that the virtual machine/disks which we create in VirtualBox, same we can use in VMWare as well since we will create .vmdk format disks. This will add flexibility for you to use it anywhere later.

We are using following configuration for our single node installation.

Server: Oracle (Sun) Enterprise Server
OS: Oracle Solaris 10 64 bit
Memory: Recommended 64 GB. More the memory, smoother the installation
Swap disk: 80 GB
Local available Disk space: 300 GB
Processor: Sun SPARC Quod core processor

Next: Install Fusion Applications Provisioning Framework

  1. Jan 31st, 2014 at 09:19 | #1

    For installing oracle fusion application 11.1.1.5 or 11.1.1.6 we want one node or two node. Please any one provide me step by step doc for installing fusion application in linux.

  2. VA
    Oct 4th, 2013 at 09:24 | #2

    Hi,

    anyone have upgraded 11.1.4 to 11.1.5/11.1.6?
    we’re planning for 11.1.6 upgradation. Pl. provide useful docs/links for
    upgradation. and also share your experience on the same if have done so..

    Thanks,

  3. Aug 23rd, 2013 at 08:21 | #3

    Hi Tushar,

    Thanks for your immediate response, here my doubt is which VMWare we should download and install to complete fusion installation process.

    As you given following link to download, but which version we should install is not clear”https://www.virtualbox.org/wiki/Downloads”.

  4. Aug 22nd, 2013 at 06:56 | #4

    Hi Admin/Tushar,

    Is is possible to install linux/Solaris in windows 7 laptop with the help of VM ware? if yes please explain the steps to follow.

    • tushar
      Aug 22nd, 2013 at 07:18 | #5

      Dear Prashant babu,

      This article already includes a post showing how to install Oracle Linux on Windows using VirtualBox.
      http://www.oratraining.com/blog/2012/02/creating-oracle-virtualbox-virtual-machine-with-oracle-linux/

      The steps for VMWare are almost identical for VMWare with almost same interface. I had posted a similar guide for VMWare long back. I will still add one more guide with latest version but till then you can use the same guide mentioned above and let me know if you face any issues.

      Regards
      Tushar

  5. Diwakar Dwivedi
    Apr 15th, 2013 at 19:18 | #6

    Hello,

    Do we have a step by step guide for setting up fusion applications on the windows x-64 environment?

    Regards
    Diwakar

    • tushar
      Apr 15th, 2013 at 20:01 | #7

      Dear Diwakar,

      So far we have posted installation guides fro Linux (11.1.6 and 11.1.1.5) and Solaris (11.1.5), while windows steps are mostly same except the pre-requisites and patches. Technically everything remains the same other than these 2. I will try to see if I can do a demo install on windows and post steps but not going to be very soon.

      Thanks
      Tushar

      • Diwakar Dwivedi
        Apr 17th, 2013 at 14:43 | #8

        Thanks Tushar!

  6. Thireesh
    Apr 12th, 2013 at 11:25 | #9

    HI Admin,

    Please let me know is it correct configuration or not.We are planning to install HCM and CRM offerings of FA 11.1.5.

    We have 2 servers.In server1 we are planning to install FADB,IDMDB and IDM Mid-Tier.
    And Some of the domains will be placed into Server2 and some of the domains will be placed to server1.

    Here doubt is ,Is it correct configuration if I install some of FA domains in server1 where IDM mid tier is running.

    If it is not correct configuration can you please provide the reason.

    Thanks in Advance.

    Thireesh

    • tushar
      Apr 12th, 2013 at 12:07 | #10

      Dear Thireesh,

      First of all I need to know your servers configuration before answering the question. Also may I know why do you want to keep few domains on same node which already has 2 DBs and identity management components. Technically speaking it is possible, we have even installed everything on single high specs server but I would not recommend but still I will first wait for your hardware specs details.

      Also why are you starting with 11.1.5 when we already have 11.1.6 available and more stable than 11.1.5

      You can follow our 11.1.6 guide at following location.
      http://www.oratraining.com/blog/2013/03/oracle-fusion-applications-installation-step-by-step-guide-11-1-6/

      Regards
      Tushar

  7. Mar 11th, 2013 at 05:41 | #11

    Can you please share the instructions for starting the fusion apps after server reboot ?

    How can we check all modules are workin fine?

  8. admin
    Jan 28th, 2013 at 08:57 | #13

    Dear Tammous,

    Sorry for the late reply since having plenty of questions in queue.
    As per our knowledge currently due to limitation of Fusion Applications architecture, you cannot add an all new product offering to an existing Fusion Applications environment. But you can surely add/select a new option in existing offering by using Oracle Fusion Applications Functional Setup Manager. For example if you have provisioned and configured only Workforce Deployment in Fusion HCM then you can later configure other functionalities like Workforce Development or Compensation Management using Functional setup manager. But you cannot add Financials later (as on today) even though the interdependent functionalities are already enabled during installation. In Functional setup manager if you select the checkbox next to a product which is not PROVISIONED then it will show a message mentioning the consequences of doing so.

    Oracle is already working on this and they will later enable adding new offering as well just like we do in eBusiness suite.

    Hope this helps. By the way I will put a post regarding this since many people have same question.

    Best regards
    ORA Training

  9. JL
    Jan 27th, 2013 at 17:48 | #14

    Just found that FA/IDM is not certified on OEL 6.x. If you get the sqlplus.mk link error, that’s the problem. At this point, just ignore and continue. Any abnormalities is unknown. During the patching process, there were errors too, so, also ignore and move on.

  10. Tammous
    Jan 25th, 2013 at 19:36 | #15

    Dear Admin,

    I’m provisioning applications for HCM, can I add financials after i completely provision HCM or i have to re-install everything all over again?

    Thanks
    Mohammed Tammous

    • admin
      Jan 28th, 2013 at 08:49 | #16

      Dear Tammous,

      Sorry for the late reply since having plenty of questions in queue.

      As per our knowledge currently due to limitation of Fusion Applications architecture, you cannot add an all new product offering to an existing Fusion Applications environment. But you can surely add/select a new option in existing offering by using Oracle Fusion Applications Functional Setup Manager. For example if you have provisioned and configured only Workforce Deployment in Fusion HCM then you can later configure other functionalities like Workforce Development or Compensation Management using Functional setup manager. But you cannot add Financials later (as on today) even though the interdependent functionalities are already enabled during installation. In Functional setup manager if you select the checkbox next to a product which is not PROVISIONED then it will show a message mentioning the consequences of doing so.

      Oracle is already working on this and they will later enable adding new offering as well just like we do in eBusiness suite.

      Hope this helps. By the way I will put a post regarding this since many people have same question.

      Best regards
      ORA Training

  11. JL
    Jan 25th, 2013 at 19:17 | #17

    Hello there,
    as you have listed about the host/server specs. You’re using a single host with 32GB RAM and about 500GB disk space. My question is, can FusionApps really run on that machine? I understand it’s a sandbox but I thought it’s a beast and it requires much more than that for the install to even finish.

    Just curious.

    I am, too, using a single box, a little higher than yours. 128GB RAM, 3TB local disk. Running on Oracle VM(OVM), each VM Guest is running on Oracle Enterprise Linux 6.x (OEL).

    Thank you so much again.

    JL.

  12. JL
    Jan 25th, 2013 at 08:26 | #18

    I’m speaking for myself but for all of us who love working with FA, please let us know how we can donate to your good cause. This is a fabulous effort.

    Thanks much.

    JL.

    • admin
      Jan 25th, 2013 at 13:05 | #19

      Thanks JL for the appreciation. All we need is to spread the word. We also do professional trainings who want one-on-one interaction and for everyone we give free online stuff so that the FA community benefits from this. All we need from you is to let others know that we exist 🙂

      • JL
        Jan 25th, 2013 at 13:17 | #20

        Absolutely. Can you let me know where you’re located and how we can contact you for the training? Thanks again.

        Again, this is fantastic! I’ve landed on other sites including reading 11.1.5 manuals and it’s been such a difficult task. You have just made it a bit easier for me and I think I will finally complete the install.

  13. Tammous
    Jan 24th, 2013 at 22:02 | #21

    Hi Admin,

    Oracle Fusion Applications R11.1.6 just got release by Oracle

    Looking forward for your install guides for that release.

    Regards,
    Mohammed Tammous

    • admin
      Jan 25th, 2013 at 13:08 | #22

      Hi Mohammed,

      When did Oracle release 11.1.6 FA? They just released 11.1.5 in Dec 2012. I think you are talking about middleware.

      Please confirm.

      • Tammous
        Jan 25th, 2013 at 13:45 | #23

        Hi Admin,

        I’m as shocked as you are.

        http://docs.oracle.com/cd/E37583_01/index.htm

        they have released the installation documentations for it, the document appeared yesterday after midnight Dubai time.

        I still didn’t see it on edelivery. i believe it’s just a matter of time and we will see edelivery download available.

        • admin
          Jan 25th, 2013 at 14:22 | #24

          Dear Tammous,

          Yes you are right, the documentation has appeared since we checked 2 days back. Once it is available on edelivery, we will start working on it.

          Thanks for the update.

          Cheers
          ORA Training team

          • JL
            Jan 31st, 2013 at 07:57 | #25

            11.1.6 software is on Oracle Delivery Software Cloud(aka edelivery).

          • admin
            Jan 31st, 2013 at 21:42 | #26

            Yes JL we saw it and soon we will start evaluating it. Thanks for the update.

          • JL
            Feb 1st, 2013 at 05:57 | #27

            Great. Install wise, I would expect minimal difference than 11.1.5. Thought?

    • JL
      Jan 25th, 2013 at 13:14 | #28

      You scare me there, agreed with admin, I just checked and it’s still 11.1.5.

  14. Info Please
    Jan 16th, 2013 at 09:54 | #29

    Hi Admin,

    We are looking at installing Fusion on single node but using Linux+Intel processors. Could you share insight on the configuration required ?

  15. admin
    Jan 5th, 2013 at 07:49 | #30

    Dear all,

    All posts have been uploaded now. We would really be glad to receive your feedback on this and any corrections or suggestions that you may want to suggest.

    We will keep updating the posts for possible corrections or enhancements so keep checking for fresh version.

    Cheers
    ORA Training

    • Mohammed
      Jan 5th, 2013 at 08:59 | #31

      Dear Admin,

      Thanks a lot for the comprehensive guide, we’ve been waiting for it.

      Thanks again
      Mohammed

  16. Ashok
    Jan 4th, 2013 at 16:07 | #32

    Can you guys share the instructions for Step 8 – Configure Oracle Identity and Access Management components.

    Or is it identical to the 11.1.1.5 blog posted earlier?

    • admin
      Jan 4th, 2013 at 18:32 | #33

      Dear Ashok,

      No steps are not identical with 11.1.1.5. We have 300 pages worth screenshots, logs etc only for this step in raw format and we are taking some time in order to present it in a most useful form to all of you. Give us a day or two and it will be complete.

      Best regards
      ORA Training

  17. Dec 30th, 2012 at 08:21 | #35

    Hi Admin,

    Thank you for your effort.
    Could you please tell me what about steps 8,9 and 10 ?

    Thanks
    Emad

    • admin
      Dec 30th, 2012 at 09:54 | #36

      Dear Emad,

      As we mentioned, the posts are still being updated. We are preparing the posts one by one and will upload the remaining steps as soon as possible. It is taking time due to holiday season.

  18. Mohammed
    Dec 29th, 2012 at 21:16 | #38

    Hi Admin,

    I\m installing 11.1.5 but the steps are missing webgate install and configuration

    can you share those steps?

    thanks
    Mohammed

    • admin
      Dec 30th, 2012 at 09:54 | #39

      Dear Mohammed,

      As we mentioned, the posts are still being updated. We are preparing the posts one by one and will upload the remaining steps as soon as possible. It is taking time due to holiday season.

  19. MT
    Dec 26th, 2012 at 04:04 | #40

    Great work folks ! Thanks for this Christmas present 🙂

    • admin
      Dec 26th, 2012 at 07:41 | #41

      You are most welcome. Merry Christmas to all of you.

      We are currently processing the guide and soon all pages will be uploaded.

      God bless you all.
